AI Dash Cam
AI Dashcam with DMS and ADAS Feature with Breath Analyser
This product integrates vehicle video monitoring, driving recorder, ADAS advanced driver assistance system and DSM driver status analysis system. The analog high-definition video recording, storage and playback are realized. Combined with 3G/4G wireless transmission technology and positioning technology, it can realize real-time uploading of video recording, automobile driving record information, driving behavior analysis and alarm evidence. Through the control center, the vehicle can be remotely monitored, analyzed and processed in real time.

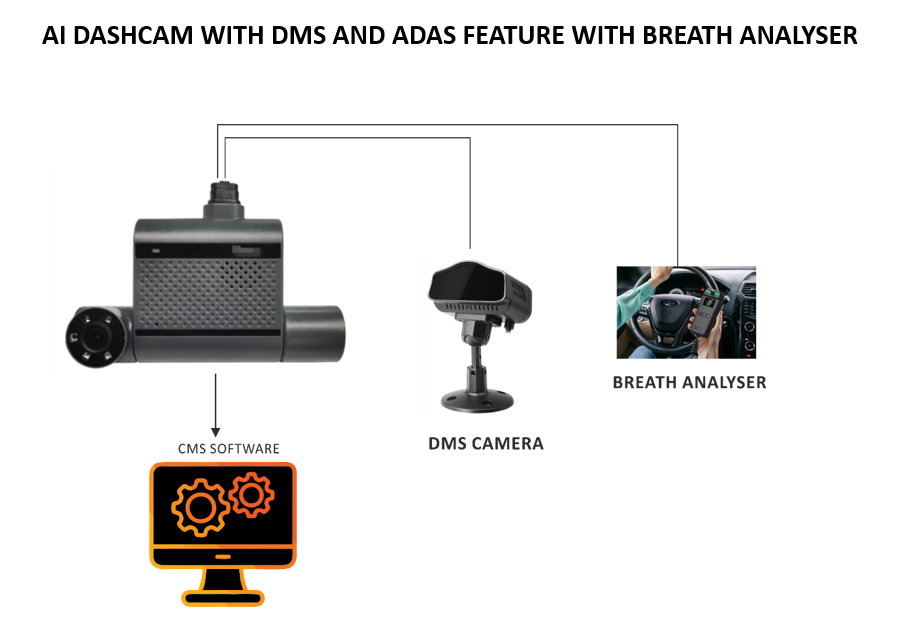

System Architecture
Complete System Integration
Integrated solution combining AI Dashcam with dual 1080P cameras (front and rear), DMS (Driver Monitoring System) camera for real-time driver status analysis, and breath analyser for alcohol detection. All components connect to CMS software for centralized monitoring and control.
AI Dashcam
Front/Rear 1080P cameras with H.265 encoding
DMS Camera
Driver fatigue & distraction detection
Breath Analyser
Real-time alcohol detection system
TechnicalSpecifications
- Built-in high performance image processing chip
- H.264/H.265 encoding, high compression ratio
- Built-in front facing 1080P camera
- Built-in rear facing 1080P camera
- Support 1CH 1080P AHD DSM/ADAS
- Professional In-Vehicle power: 9-32V DC Wide Voltage Range
- Multi protection circuits (under-voltage, short, reversed plug-in)
- Smart power management system
- Support TF card storage, maximum 512G
- Built-in 4G module with 4G antenna
- GPS/BD/GLONASS positioning - high sensitivity, fast positioning
- WIFI module (optional), frequency 2.4GHz
- Built-in ultra capacitor for data protection
KeyFeatures
- Real-time driver fatigue detection (DMS)
- Distraction and phone usage alerts
- Forward collision warning (ADAS)
- Lane departure warning (LDW)
- Integrated breath analyser for alcohol detection
- H.264/H.265 video encoding with high compression
- 3G/4G real-time video streaming
- GPS/GLONASS tracking and positioning
- Special file management system with data encryption
- Proprietary TF card bad track detection
- Built-in WIFI connectivity (2.4GHz)
- CMS software for central monitoring
- Automatic incident recording and alerts
ValueBenefits
- Up to 80% reduction in accidents
- 100% prevention of drunk driving with breath analyser
- Lower insurance premiums
- Real-time driver behavior coaching
- Protected evidence for incidents
- Improved fleet safety scores
- Reduced liability and litigation costs
- Enhanced driver accountability
- Remote real-time vehicle monitoring
- Long TF card service life with bad track detection
- Data security with encryption and ultra capacitor backup
Use CasesApplications
- Commercial fleet vehicles
- Taxi and ride-sharing services
- Logistics and delivery trucks
- Public transportation buses
- Corporate vehicle fleets
- Construction and mining vehicles
- School buses
- Government vehicles
