Passenger Counting

Accurate Analytics for Smart Operations

Automated passenger counting systems for public transport/movement delivery analytics with integrated Mobile DVR recording system. Provides accurate occupancy data for better route planning and resource allocation.

Mobile DVR System

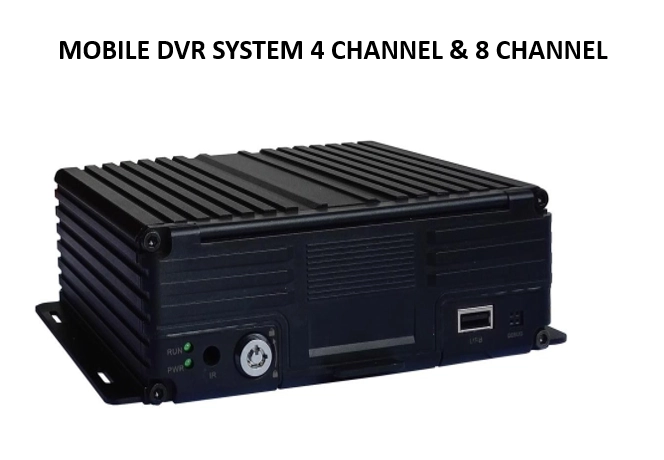

Mobile DVR System - 4CH & 8CH

Professional in-vehicle DVR recording system with H.265/H.264 encoding for superior video quality and storage efficiency. Supports up to 8 channels with GPS tracking, G-sensor, and 4G connectivity for comprehensive fleet monitoring.

Recording Features

• H.265/H.264 high compression
• 4 & 8 channel 1080N AHD
• SD card up to 512GB
• HDD storage up to 2TB
• Encrypted file protection
• Bad track detection

Smart Features

• GPS drift suppression
• G-sensor impact detection
• Built-in 4G connectivity
• WiFi module (optional)
• 9-32V DC wide voltage
• Smart power management

Technical
Specifications

H.265/H.264 encoding, high compression ratio
Supports Four & 8 CH 1080N AHD
AHD/TVI/CVI/CVBS video inputs
1CH CVBS output, 1CH VGA output
Support image horizontal and vertical mirror adjustment
Support G-sensor
Unique GPS drift suppression algorithm
Professional In-Vehicle power design, 9-32V DC Voltage Range
Multi protection circuits like under-voltage, short, reversed plug-in
Smart power management system, shutdown under low voltage, low consumption when standby
Special file management system to encrypt and protect the data
Proprietary technology to detect the bad track of the Hard disk which can make sure the continuity of video and long service life of the Hard disk
Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage
Support SD card storage, maximum 512GB and 2.5 inch Single Hard disk, maximum 2TB
Support GNSS, high sensitivity, fast positioning
WIFI module (optional), frequency 2.4ghz
Built-in 4G

Key
Features

Bi-directional counting (boarding/alighting)
Real-time occupancy monitoring
Heat map generation
Historical data analytics
Integration with AVL systems
Privacy-compliant (no facial recognition)
Cloud-based reporting dashboard

Value
Benefits

Optimized route planning and scheduling
Improved service frequency decisions
Better resource allocation
Enhanced passenger experience
Data-driven operational decisions
Compliance with capacity regulations
Revenue protection and validation

Use Cases
Applications

City buses and metro systems
Airport shuttles
Tourist transportation
Campus shuttle services
Retail footfall analysis

Interested in Passenger Counting?

Get in touch with our team to learn more about how this solution can benefit your organization.
